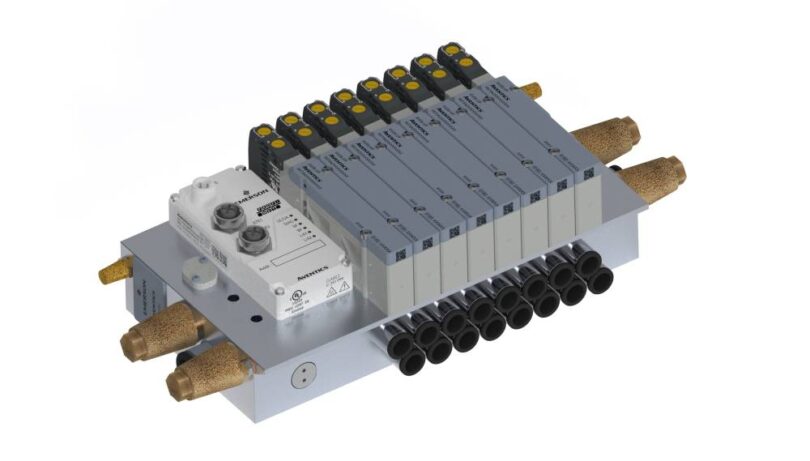

Emerson has expanded its AVENTICS XV pneumatic valve platform with a higher-flow version designed for compact automation systems.
The AVENTICS XV05 High Flow Valve System provides airflow of up to 1,200 litres per minute. It is intended for applications requiring greater pneumatic capacity without moving to a larger valve platform.
Higher flow within the XV05 platform
The new model increases the maximum flow capacity from 1,000 litres per minute for the standard XV05 to 1,200 litres per minute. Emerson has achieved the increase through larger ports and dedicated high-flow fittings.
The High Flow variant retains the existing platform’s architecture, electrical connection options and communication protocols. Standard and High Flow modules can also be combined within a single valve system, allowing designers to allocate the higher capacity only where it is required.
Emerson said this compatibility could help original equipment manufacturers increase airflow without changing the wider pneumatic architecture of a machine. The approach may also reduce the redesign work associated with moving to a larger valve platform.
Application in water treatment systems
Potential water treatment applications include pneumatic pilot valve systems used to operate process valves. These systems use compressed air to control valve actuators within automated treatment processes.
The higher flow capacity may be useful where larger actuators or faster operating cycles are required. Suitability will depend on factors including actuator size, operating pressure, pipework and the required opening or closing time.
Other proposed applications include packaging and moulding equipment, cutting systems, cleaning machinery, pneumatically driven winches and automotive manufacturing equipment.
Flexible installation configurations
The AVENTICS XV05 High Flow system is available with front, top or bottom pneumatic connections. These configurations give equipment designers several options for installing the valve system in machinery and control cabinets where space is restricted.
The wider AVENTICS XV platform supports direct electrical connections, IO-Link and a range of industrial communication protocols. Emerson also provides an online configuration tool for selecting valve arrangements, accessories and connectivity options.
The company said the AVENTICS XV05 High Flow Valve System is available globally with immediate effect.
Emerson has previously introduced automation technologies for water operations, including its Ovation 4.0 platform for the power and water industries. H2O Global News has also covered the company’s work on generative AI for utility operations.
Frequently asked questions
What is the AVENTICS XV05 High Flow Valve System?
The AVENTICS XV05 High Flow is a pneumatic valve system developed by Emerson for compact automation applications requiring higher airflow. It extends the company’s existing XV05 platform.
What is the system’s maximum flow capacity?
The AVENTICS XV05 High Flow system delivers airflow of up to 1,200 litres per minute. The standard XV05 has a stated maximum capacity of 1,000 litres per minute.
How can the valve system be used in water treatment?
Water treatment applications include pilot valve systems used to control pneumatically operated process valves. The required configuration depends on the actuator, operating pressure and process requirements.
Can standard and High Flow XV05 modules be combined?
Yes. Emerson says standard and High Flow modules can be installed within the same valve system, allowing additional airflow to be provided at selected positions.
Is the AVENTICS XV05 High Flow available globally?
Yes. Emerson says the system is available globally in front, top and bottom port configurations.
“`
